ASTM d6729: Hydrocarbons in spark ignition engine fuels –
VB-1 Column
(Mouseover text to see various segments)

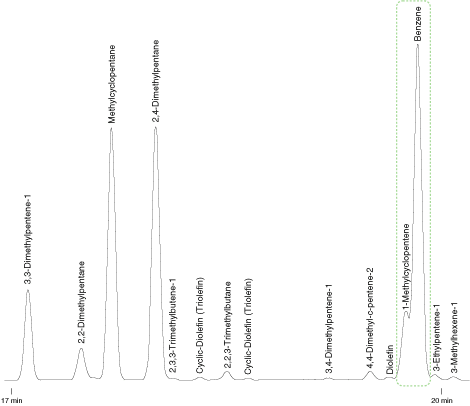

- Segment 1: Separation of 1-Methylcyclopentene and Benzene
- Segment 2: Separation of Toluene and 2,3,3-Trimethylpentane
- Segment 3: Separation of meta- and para-Xylene
- Segment 4: Separation of Propylbenzene to Decane
- Segment 5: Separation of 1-Methylnaphthalene and n-Tridecane
Courtesy of Separations Systems, Inc.
| Run conditions | |
|---|---|
| Column | VB-1, 100m x .25mm x 0.50µm |
| Column temp | 0°C for 15 min to 50°C at 1°C/min to 130°C at 2°C/min to 270°C at 4°C/min |
| Detector | FID at 320°C |
| Carrier | Helium, 24 cm/sec @ 35°C |
