Make-Up Adapter

make-up adapter

The fused silica make-up adapter connects a fused silica capillary column to a valve or detector while adding a make-up gas. In the reverse mode it works like a splitter, without the uneven or erratic split seen with basic tees. Two lengths are available - 1.5" and 3.5".

The 1/32" FS adapters must be ordered separately.

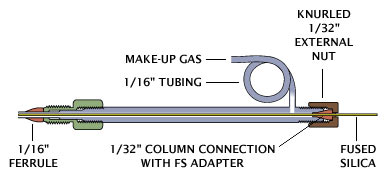

schematic

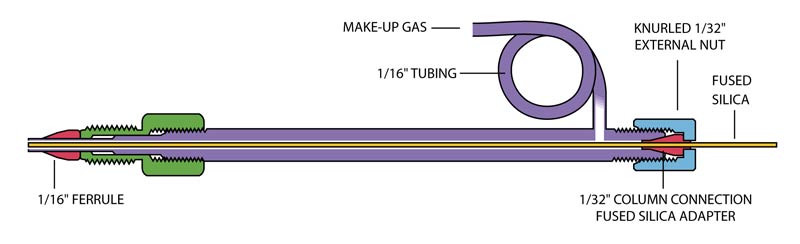

Make-up adapter
close move
Description Bore Product No.
1.5" make-up adapter 0.5 mm FSMUAS1.5M
0.75 mm FSMUAS1.5
1.0 mm FSMUAS1.5L
3.5" make-up adapter 0.75 mm FSMUA1.5
For tubing OD:
1/32" FS adapters
(pkg. of 5)
≤ 0.25 mm FS.25-5
0.25 mm ≤ 0.4 mm FS.4-5
0.4 mm ≤ 0.5 mm FS.5-5
0.5 mm ≤ 0.8 mm ZF.5V-5

SEE ALSO

TECH TIP

  • Which adapter for my column?
  • Use only polymeric ferrules for 1/16" and 1/32" external fitting details. Metal ferrules might distort the fitting.
