Standard Precolumns (guard columns)

guard columns

Precolumns are available in 2 cm and 5 cm lengths, and can be filled with either 5µ packing or 37 - 44µ pellicular packing. Both lengths are used in conjunction with a column end fitting. When packed for high efficiency they can be used as analytical columns, but a more typical use is as a guard column installed between the injector and the analytical column.

Standard material is Type 316 stainless.

Each precolumn system includes:

  • One precolumn insert
  • One column end fitting (see illustration below)
  • One 2µ frit

Precolumn inserts are also sold for use with your existing column end fitting.

Description Product No.
1/4" x 2 cm precolumn system PCS412F
1/4" x 5 cm precolumn system PCS415F
1/4" x 2 cm precolumn insert PCL412
1/4" x 5 cm precolumn insert PCL415
schematic

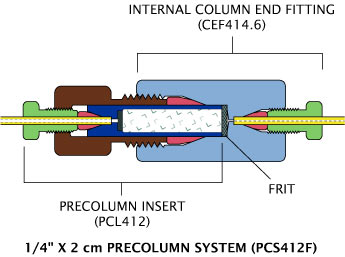

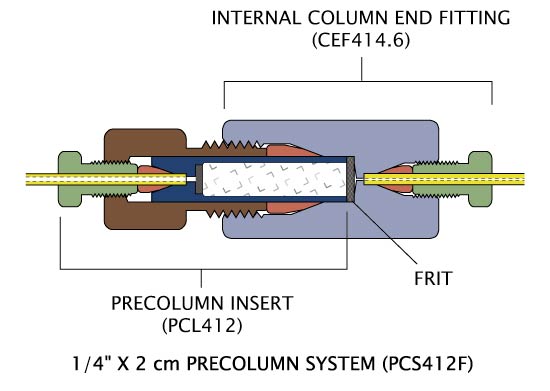

1/4" x 2 cm pre-column
close move
schematic

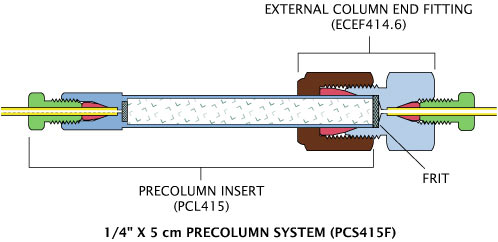

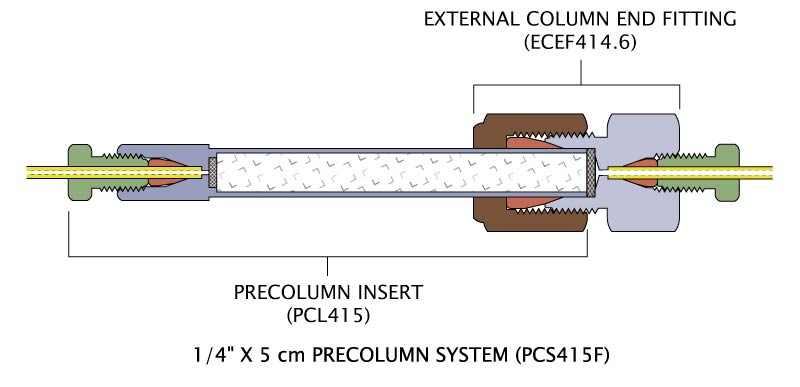

1/4" x 5 cm pre-column
close move

NOTE: As a courtesy to our OEMs, VICI does not supply pre-packed columns.

MORE INFORMATION

SEE ALSO

TECH TIPS

  • When packing columns, use Valco's through-type unions to couple the column to the packing reservoir.
  • Standard column end fittings are Type 316 stainless, but since the column wall and frit form over 99% of the column surface area, standard fittings with titanium frits can generally be used on inert columns.
