Manifolds, 1/4-28 – Low Pressure

NOTE: Cheminert 1/4-28 manifolds are non-stock items, available only on a special order basis.

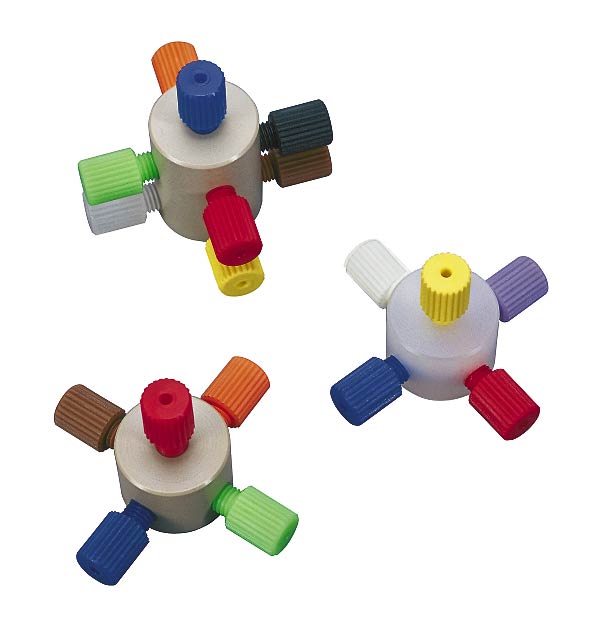

Cheminert 1/4-28 manifolds
Cheminert 1/4-28 manifolds
close move

Cheminert manifolds join four or eight tubes to a common outlet, and include flangeless 1/4-28 tube end fittings for tubing OD indicated.

Sold individually.

Material No. of ports Tubing OD Bore Product No.
PEEK 5 ports 1/16" 0.75 mm C5M1PK
1/8" 1.50 mm C5M2PK
9 ports 1/16" 0.75 mm C9M1PK
1/8" 1.50 mm C9M2PK
CTFE 5 ports 1/16" 0.75 mm C5M1KF
1/8" 1.50 mm C5M2KF
9 ports 1/16" 0.75 mm C9M1KF
1/8" 1.50 mm C9M2KF
